Long Length Heavy Pump Water Well Hose With Circular Woven Polyester Jacket

Name: Long Length Heavy Pump Water Well Hose With Circular Woven Polyester Jacket
Brand: ASOE
Price: 1 USD

Brand Name : ASOE

Model Number : Welline HP

Certification : ISO,NSF61

Place of Origin : China

MOQ : 10cm

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000m per week

Delivery Time : depends on your order quantity

Packaging Details : Standard Export Package

Product Name : Well riser PU layflat hose

Raw Material : BASF Polyurethane

Inner tube and cover : PU cover and tube

Standard Color : Blue or others

Standard Length : 300,330,660ft, etc

Application : Mining dewatering，Groundwater rising

Contact Now

Long Length Well Riser Layflat Hoses Connecting with Heavy Pump Through the Weave Extracting Groundwater 8 Inch

Welline HP is made from extruded thermoplastic polyether based polyurethane (TPU) with excellent wear & tear properties and is approved by NSF 61 standard.
The reinforcement is made from circular woven filament polyester yarn. The extrusion through the weave production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.
Welline HP is chemical resistant, acid resistant, and corrosion resistant. These hoses are connected with submersible pump and are very easy to be installed and retrieved.

Inner tube and cover: Smooth PU cover and tube. One strip of reinforced polyurethane on the side of cover to support the electrical cables and accessories
Reinforcement: Circular woven polyester jacket
Standard Color: Blue, other colors available per request
Couplings: Stainless steel couplings with BSP thread,etc.

Standard Length: 300ft/91.5m, 330ft/100m,660ft/200m; other lengths available per request;

Operating Temperature Range: From -60° F to 176° F(-50° C to 80° C)

Warranty: 10 years guarantee

Advantage

►Lightweight, layflat coilable construction
►Easy to handle, reducing the time and cost involved when installing submersible pump
►Easy to store and transport
►Free of maintenance
►Resistant to corrosion and microbiological and internal scaling
►Self-supporting layflat riser
►Easily installed in irregular wells
►Higher water flow in narrow wells
►High safety margins in both tensile and hydraulic performance
►Compatible with all types of submersible pumps
►Rapid installation and retrieval methods resulting in substantial labor and cost savings

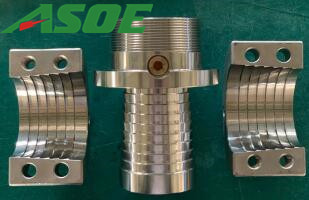

Welline HP WLHC Coupling

Welline™ HP PU Layflat Hoses
ID		Wall Thickness		Weight		Working Pressure		Tensile Strength
Inch	mm	Inch	mm	lbs/ft	kg/m	PSI	bar	Kg	Lbs
8	204+3.0	0.24	6.0	3.02	4.50	260	30	70,200	154,000

Mining Dewatering
Fresh Water Supply Solutions in mines
Water utilities
Agriculture
Groundwater rising
Sports field, playgrounds and parks

Installation

1. Assemble Weline HP hoses with WLHC coupling
2. Connecting WLHC coupling with submersible pumps
3. Attach power cable using Welline HP cable Straps
4. Hang Welline HP hose and pump
5. Lower Welline HP hose and pump into well
6. Assemble the other end of hose with WLHC coupling
7. Connecting WLHC coupling with well head base
8. Fix well head base
9. Install elbows, valve and other output pipes

For some large boreholes, vehicles and cranes are required to assist installation.
